Water Ripple
Stainless Steel
Light in Motion. Formed in Stainless Steel.
A three-dimensional embossed stainless steel surface that transforms reflected light into fluid, continuously changing patterns—bringing movement and depth to ceilings, walls and architectural features.
A Surface That Moves with Light

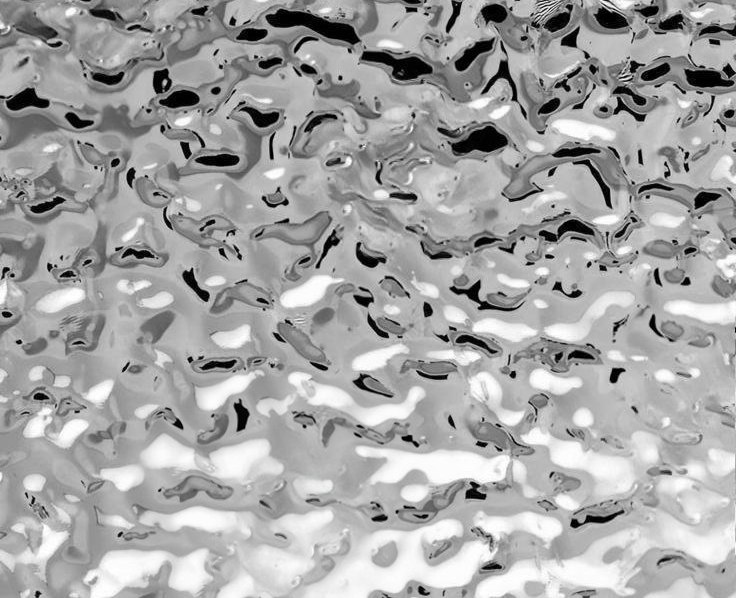

Water ripple stainless steel is formed with an irregular three-dimensional texture that breaks a flat reflective surface into flowing highlights and shadows.
As the viewing angle and surrounding light change, the reflection changes with them—creating a surface that can appear calm from one direction and highly dynamic from another.
Its architectural impact comes from the interaction of texture, reflection, scale and light rather than from an applied graphic pattern.
Choose the Scale of the Ripple
Ripple scale changes how the surface reads from different distances. Finer textures create denser highlights, while larger formations produce broader, more dramatic reflections.

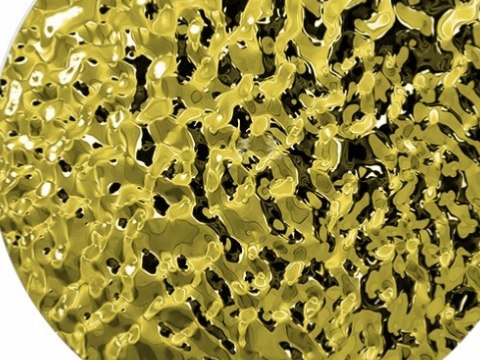

Small Ripple
Finer surface movement with a denser, more controlled reflective character.
Best Suited ToDetail surfaces · Wall features · Smaller-scale interiors

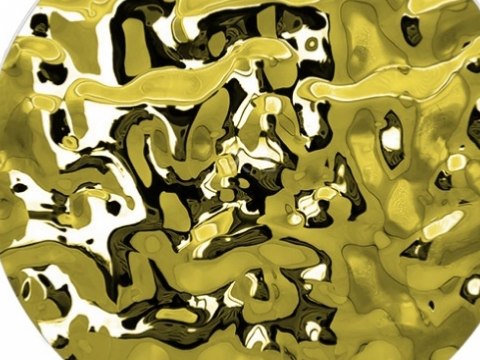

Medium Ripple
A balanced relationship between texture, reflection and architectural scale.
Best Suited ToWalls · Lobbies · Ceilings · Interior features

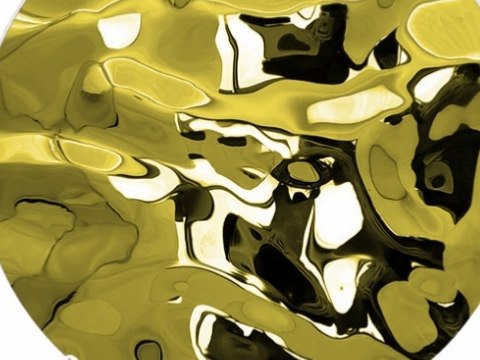

Large Ripple
Broader surface geometry creates stronger movement and more dramatic reflections across large areas.
Best Suited ToLarge ceilings · Feature walls · Entrances · Landmark interiors
Designed to Change with the Space
Water ripple does not present a fixed visual image. Its appearance changes with viewing distance, lighting direction and the colors reflected from the surrounding environment.

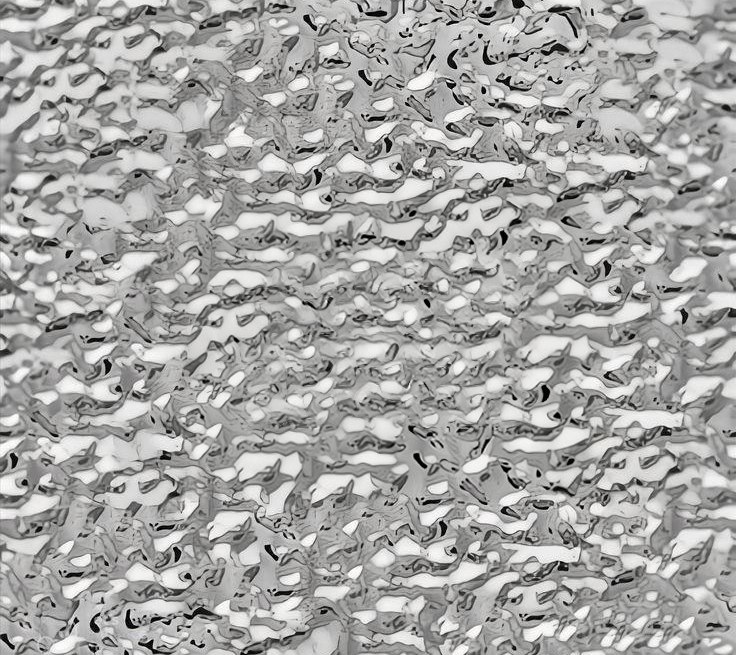

Soft Light
Softer illumination reveals the texture with quieter tonal transitions.

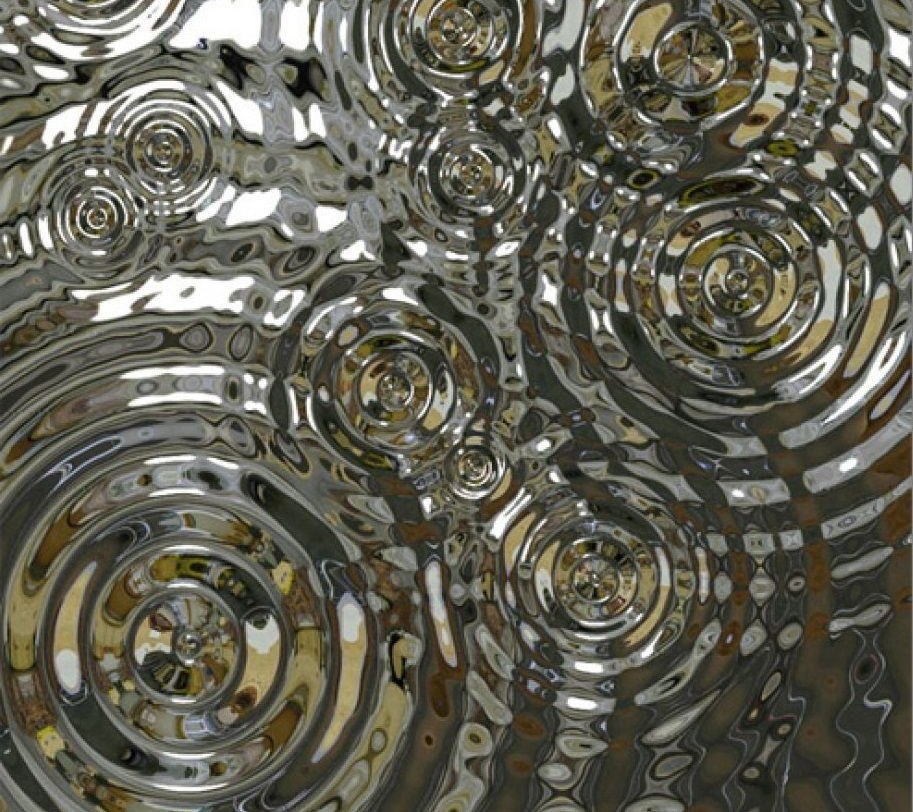

Directional Light
Focused light increases contrast between highlights and valleys.

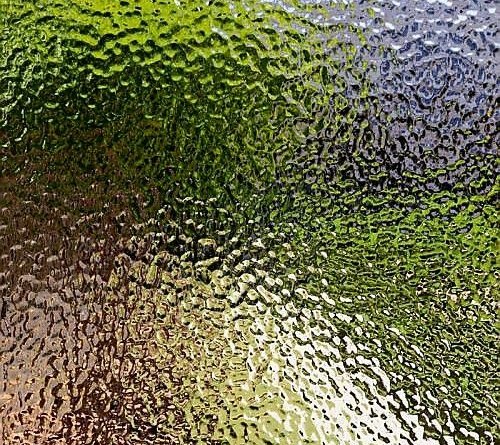

Environmental Reflection
Surrounding materials, colors and movement become part of the surface expression.
One Texture. Different Atmospheres.
Water ripple can be combined with PVD color to shift the same three-dimensional texture from cool and minimal to warm, dramatic or highly decorative.

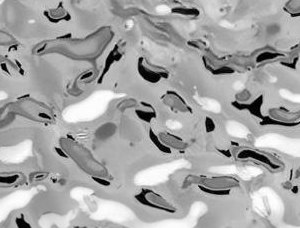

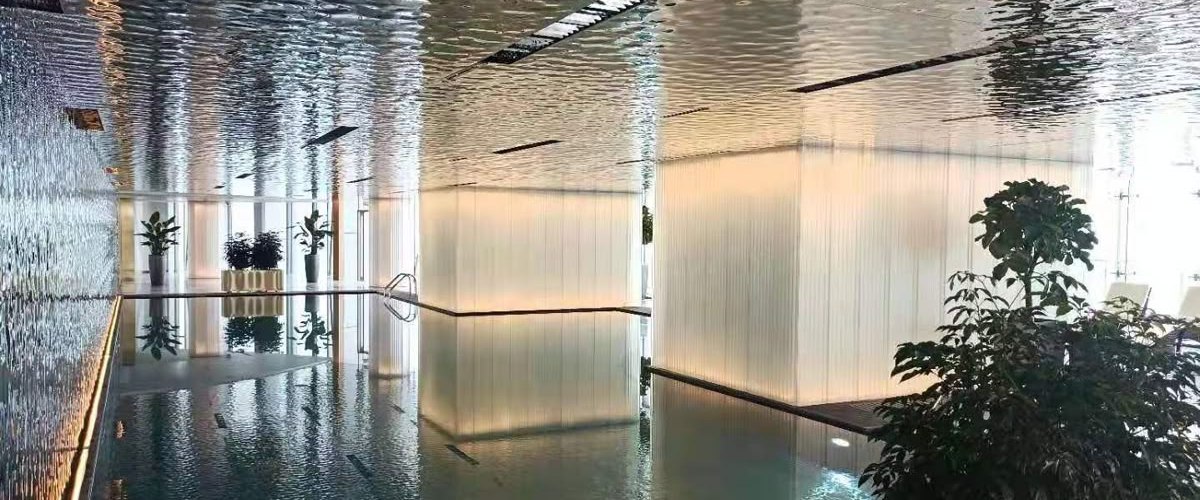

NaturalClean · Reflective · Contemporary

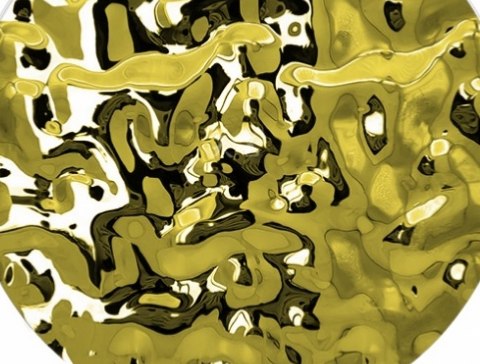

GoldWarm · Luminous · Decorative

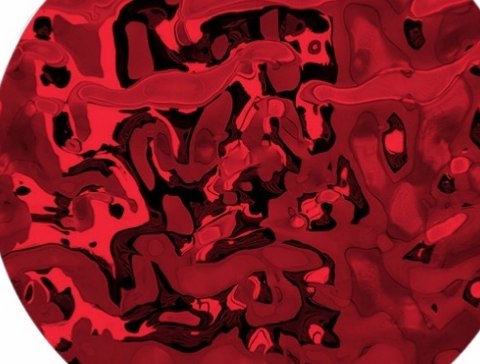

Red BronzeRich · Warm · Statement

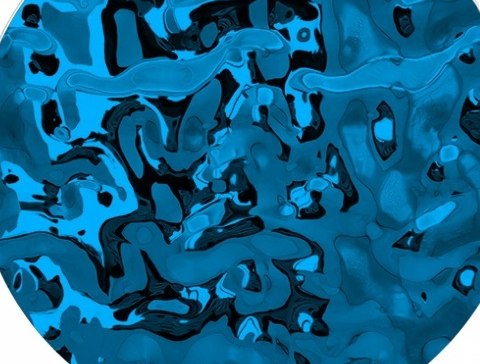

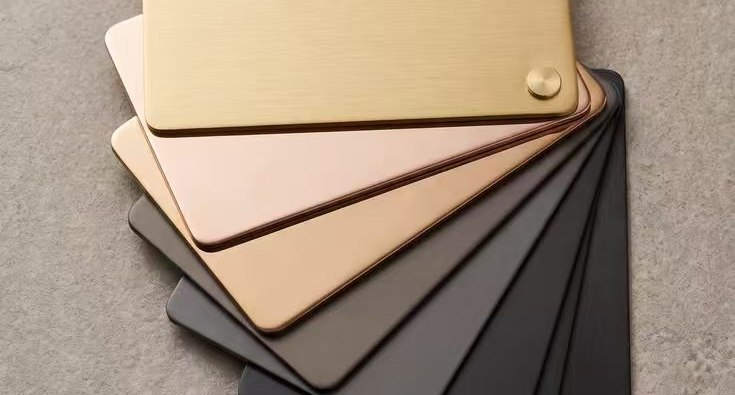

Sky BlueCool · Controlled · ContemporaryThe same ripple texture can be produced in further PVD tones—champagne, bronze, dark titanium and project-specific colours—developed according to your reference and production requirements. Explore PVD Color Coating →
From Feature Surface to Architectural Scale

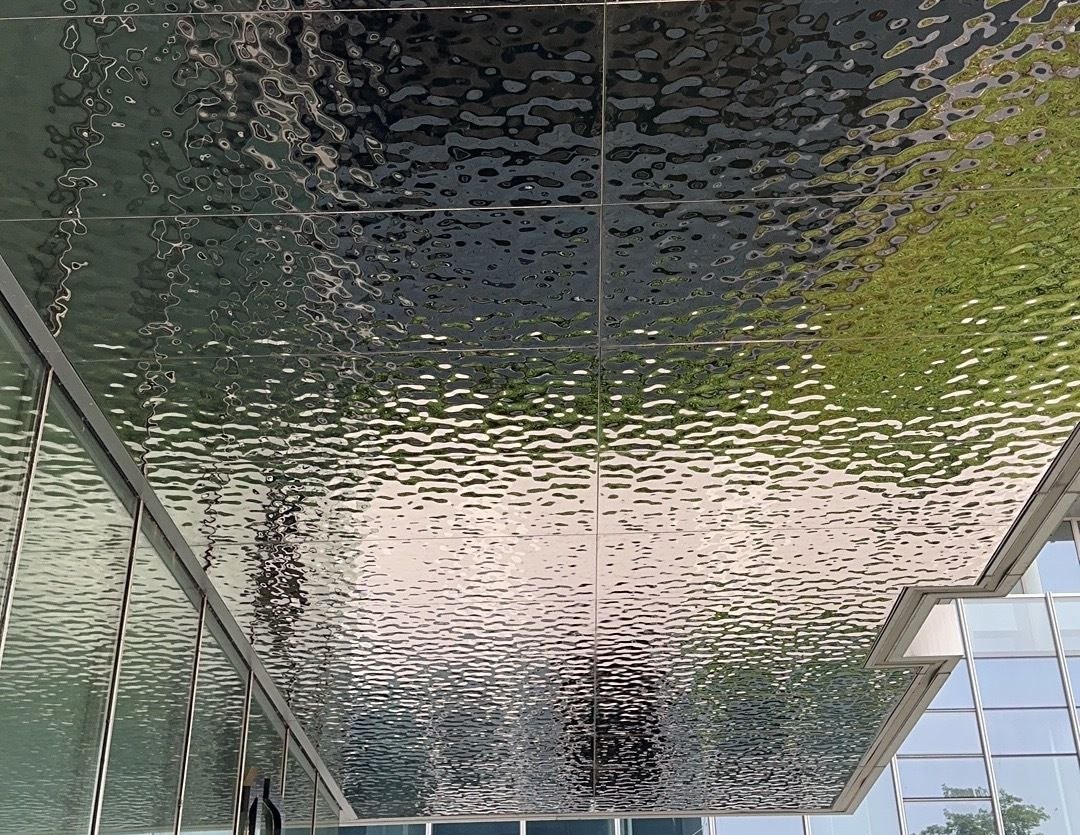

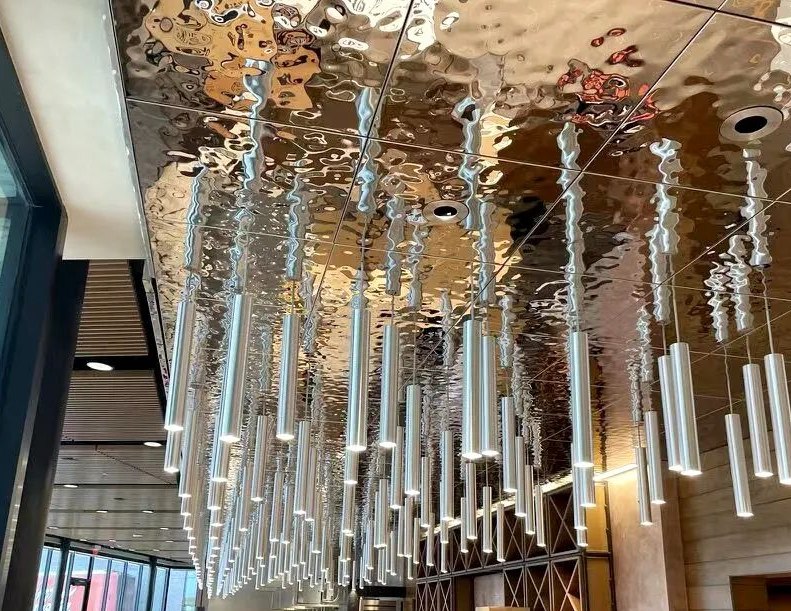

Ceilings
Fluid reflection brings movement and visual depth to large overhead surfaces.Recommended: Medium / Large Ripple

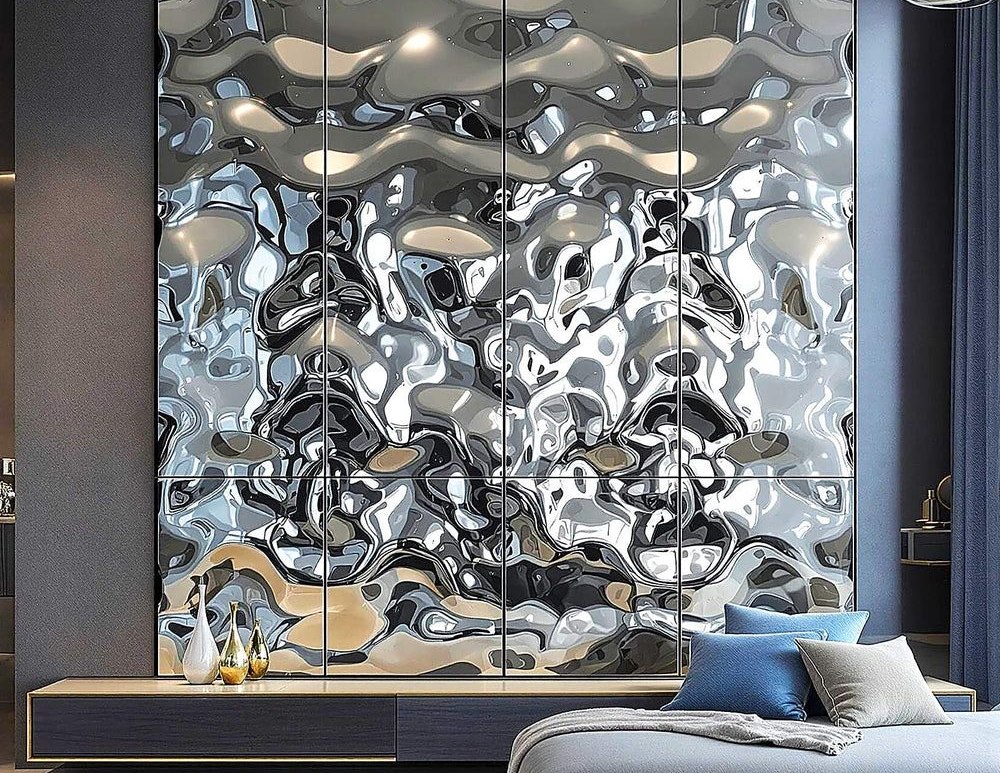

Feature Walls
A three-dimensional reflective surface for lobbies, hospitality and statement interiors.Recommended: Small / Medium / Large
Elevator Lobbies
Reflective texture creates a distinctive material identity around portals and wall surfaces.Recommended: Small / Medium Ripple

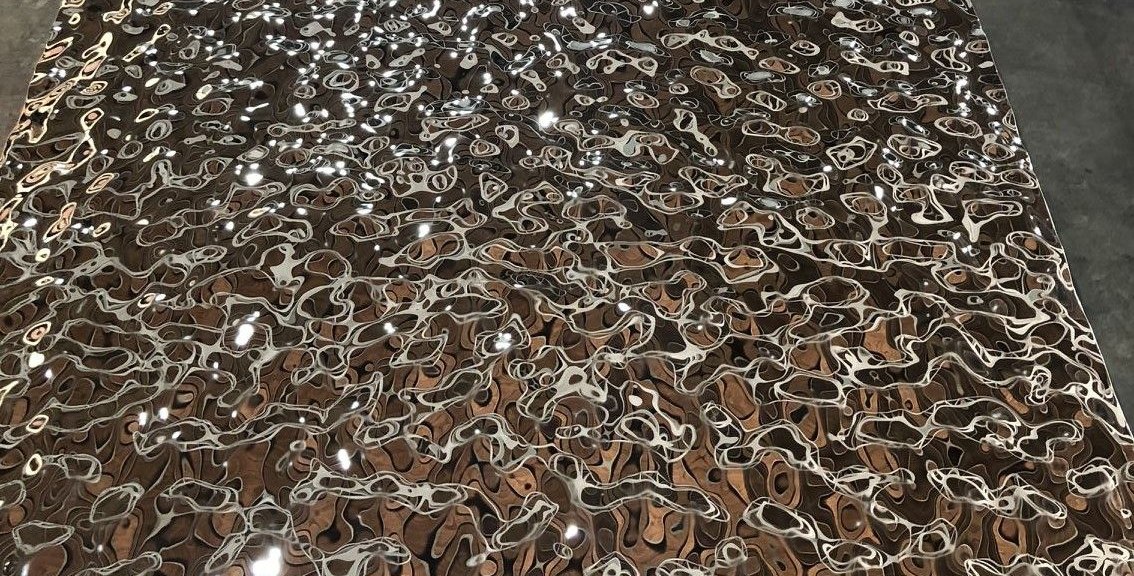

Entrances & Canopies
Water ripple extends expressive stainless steel surfaces into architectural thresholds. Material selection must consider the project environment.Recommended: Medium / Large Ripple

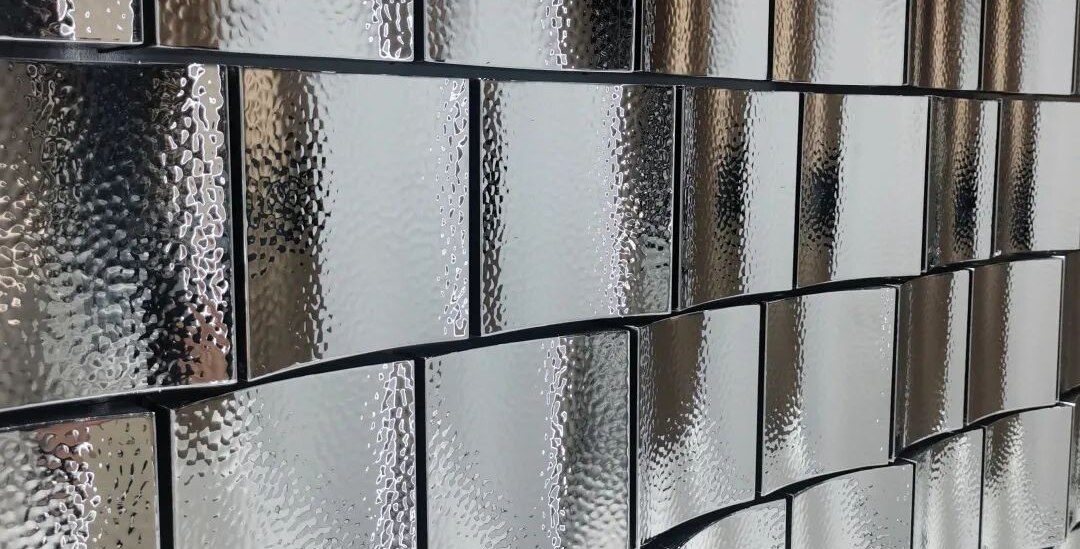

Bespoke Features
Suitable for counters, columns, display structures and custom-formed architectural elements.Recommended: By Project Geometry

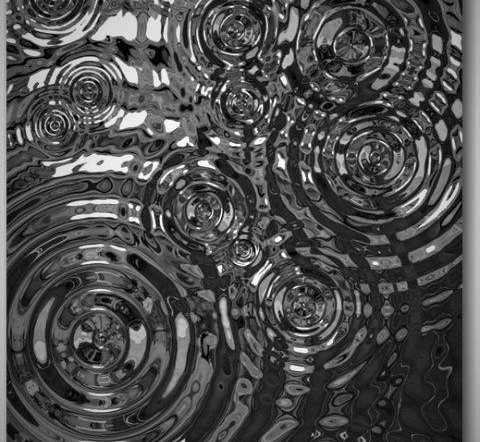

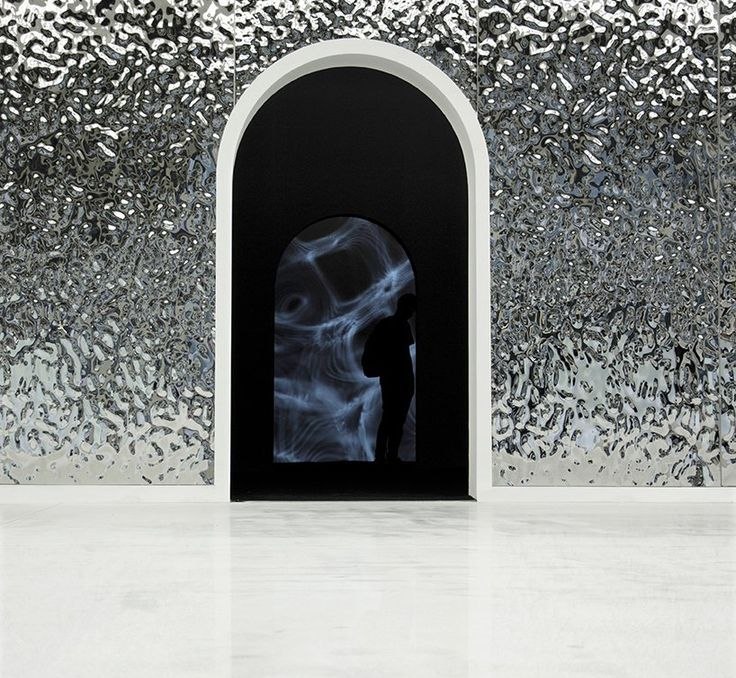

From Flat Sheet to Architectural Component
Selecting the texture is only the beginning. Ripple direction, panel dimensions, edge details and subsequent fabrication all influence how the finished surface appears after installation.
Texture Orientation
Coordinate ripple direction and visual continuity across adjacent panels.
Panel Planning
Consider panel dimensions, joints and viewing distance before production.

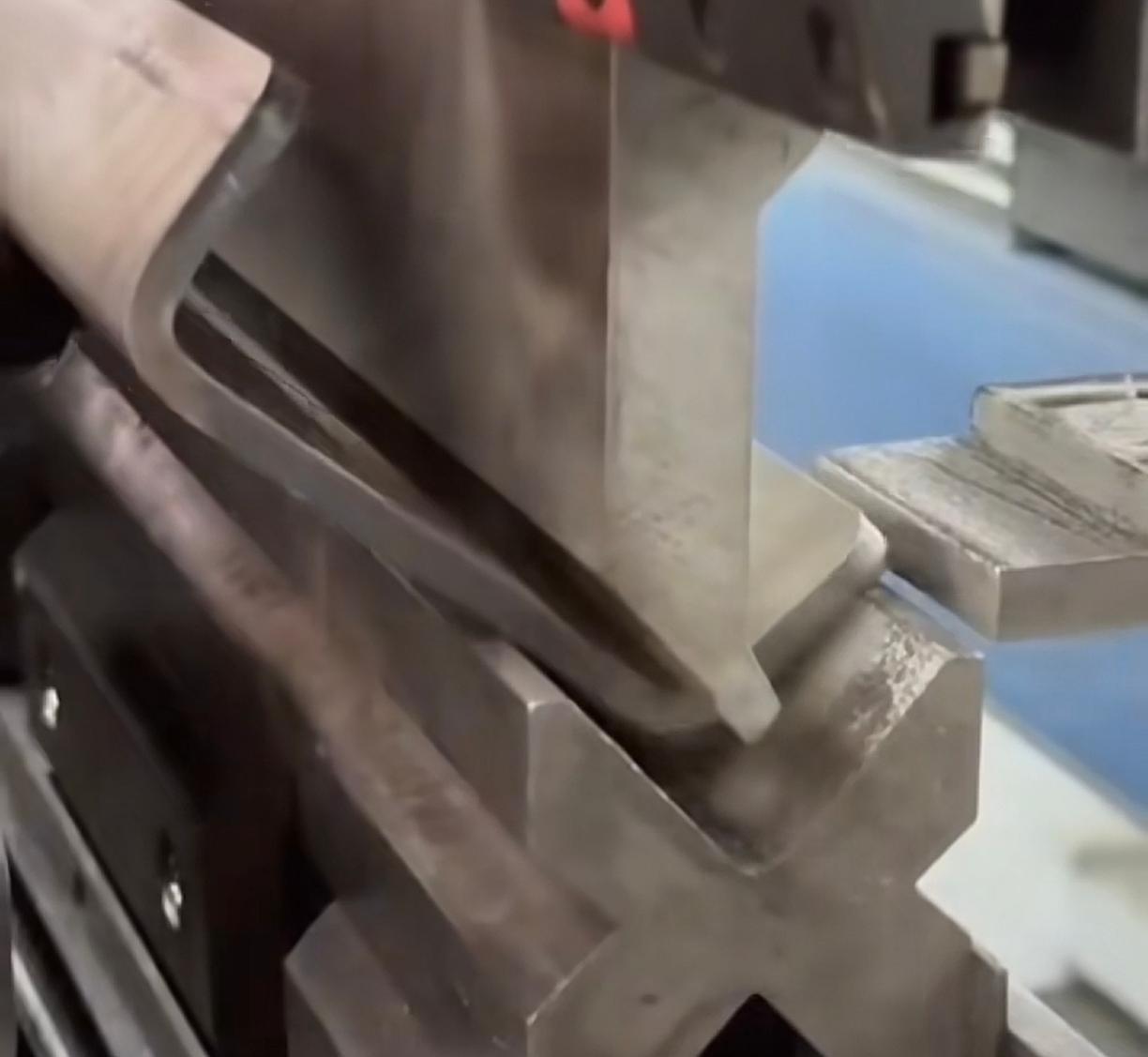

Cutting & Forming
Develop cutting, bending and forming around the selected texture and component geometry.
Surface Protection
Protect the finished surface through fabrication, handling, packing and delivery.
Specification at a Glance
Water Ripple Stainless Steel
| Technique | Cold Rolled / Physical Embossing |
|---|---|
| Thickness | 0.3–3.0 mm* |
| Width | 10–1500 mm* |
| Length | 300–6000 mm* |
| Recommended Grade | 304 / 316L / 201 |
| Flatness | 10 mm Maximum 3D embossed products; per the product parameter table |
| Tolerance | Thickness ±0.01 mm Width / Length −0 / +0.2 mm |
| Surface Roughness (Ra) | N/M Not applicable to an uncolored embossed surface |
| Color Difference (ΔE) | N/M for uncolored embossed surface When PVD coated, confirm against the corresponding PVD product or order standard |
| Fire Rating | A1 |
| Packing | PVC Film + Waterproof Paper + Wooden Box |
Confirm Before Order
Project Conditions Come First
Ripple geometry, sheet direction and the fabrication route determine what the finished surface will look like on site. Share your drawings and we will confirm the parameters that apply to your specific texture, grade and panel layout before sampling.
Texture
Ripple Scale / Direction
Sheet
Thickness / Width / Length
Fabrication
Cutting / Bending / Joints
Finish
Natural or PVD Color
*Final width and length ranges must be confirmed against the product parameter table for this specific ripple texture and order conditions.

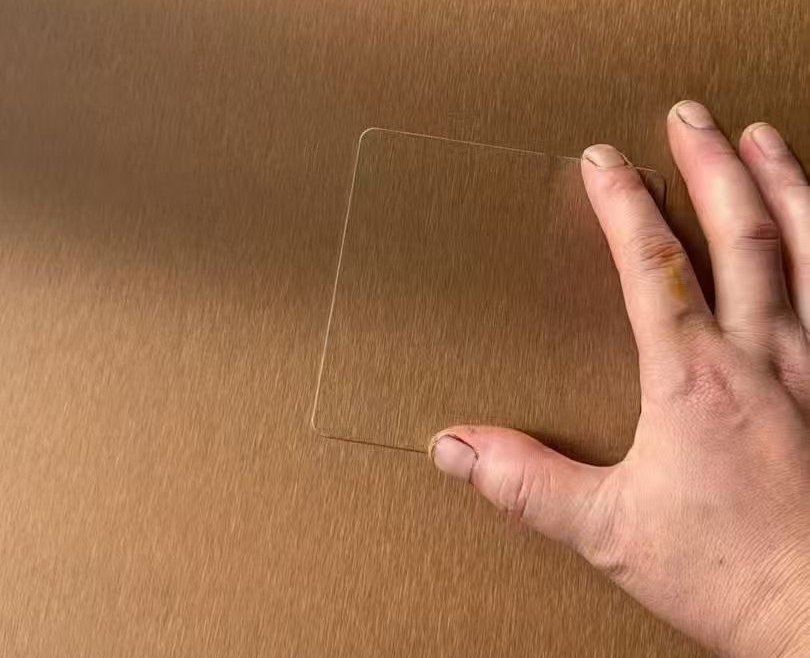

Choose by Effect. Confirm by Sample.
Ripple scale, color and lighting can change the appearance of the material significantly. For architectural projects, we recommend evaluating a physical sample under lighting conditions close to the intended application before final approval.
SELECT
Choose ripple scale, stainless steel grade and color direction.
SAMPLE
Review texture, reflection and color using a physical project sample.
APPROVE
Use the approved reference as the visual benchmark for production.
Project Sampling Available — sampling is scheduled against the project programme and the selected texture.

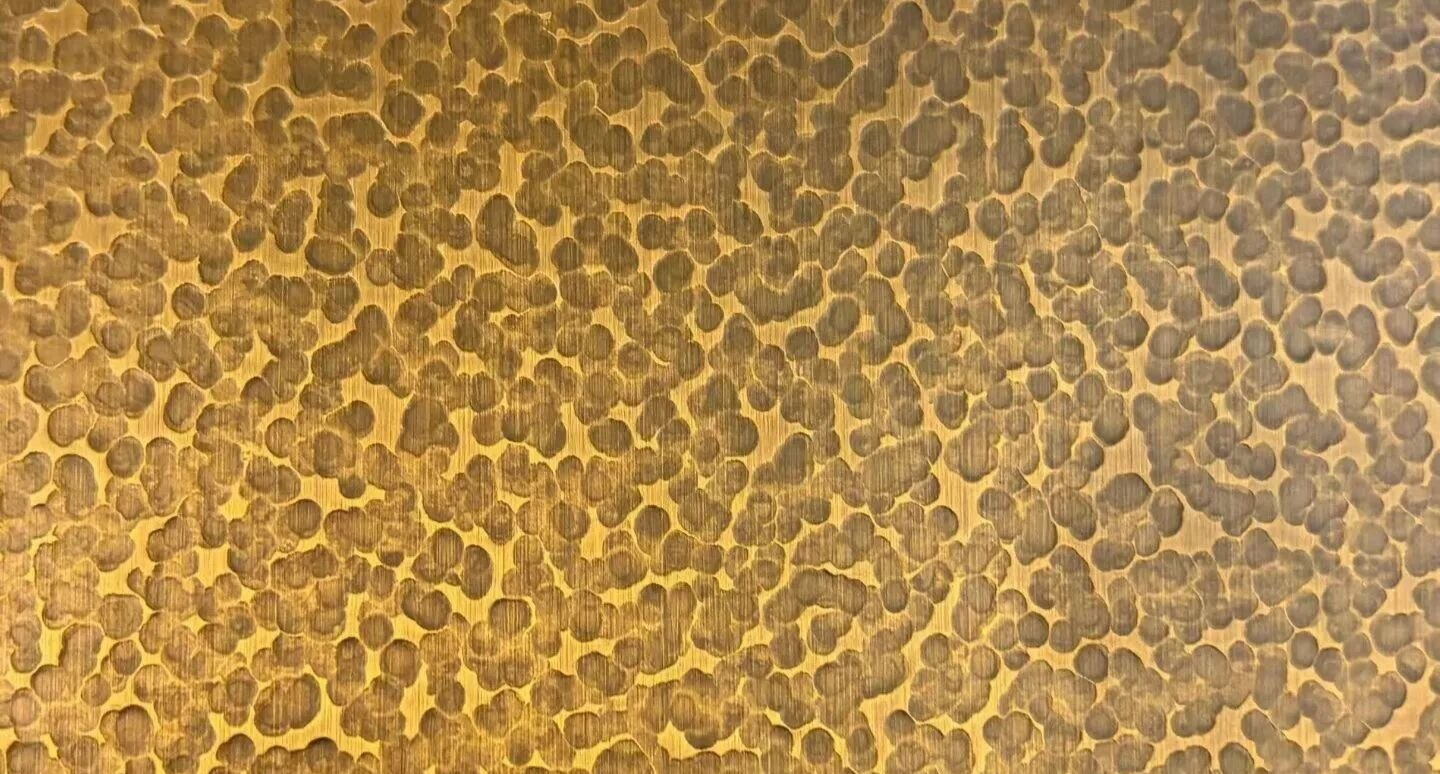

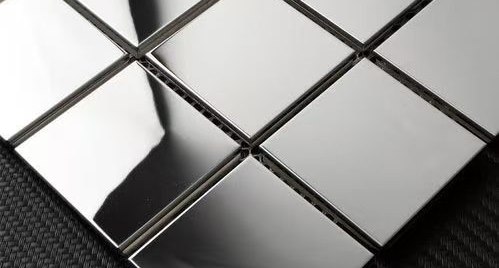

Explore Related Surfaces
Compare alternative textures, colors and reflective effects for your project.
See Water Ripple in Your Own Material Palette.
Request a physical sample or share your drawings and finish references. Our team can help evaluate ripple scale, color, material grade and fabrication requirements for your application.
